Spreading large quantities of binding agents while adhering to the specified accuracy at the same time is of paramount importance in both soil stabilization and cold recycling. The sophisticated binding agent spreaders from Streumaster meet these requirements with superior ease. In addition, our comprehensive product portfolio takes due account of both different performance requirements and the availability of tractor vehicles. The binding agent spreaders from Streumaster are therefore on offer in various model designs: as attachment units, trailers, built-up units for mounting on a carrier vehicle, or self-propelled spreading machines.

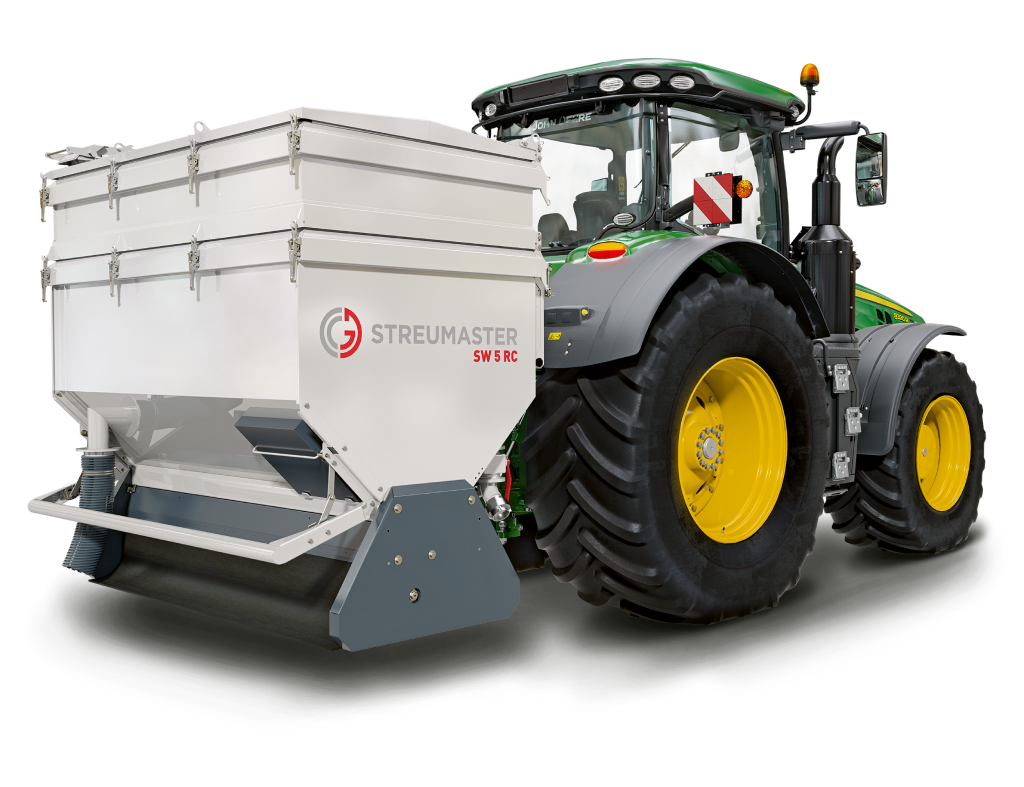

The compact tractor-towed spreaders are primarily used on smaller construction sites and in confined spaces. The standardised three-point linkage at the front or rear enables the spreader to be coupled to all common tractors. Their hopper volume ranges from 3 m³ (front spreader) to 5 m³ (rear spreader).
Drawn spreaders are available as both robust single-axle or tandem-axle trailers. Various trailer drawbars and brake systems, as well as an optional auxiliary engine that can be mounted to the spreader, allow the units to be combined with different towing vehicles – usually with off-road tractors. Their hopper volume ranges from 10 m³ (single-axle trailer) to 16 m³ (tandem-axle trailer).
Working width / Partial widths
2,500 mm
Container capacity
10 m³
Spreading qty at 2 km / h
2 – 35 l/m²
Empty weight
4,800 kg
Working width / Partial widths
2,500 mm
Container capacity
16 m³
Spreading qty at 2 km / h
2 – 35 l/m²
Empty capacity
6,600 kg
Working width / Partial widths
2,360 mm/3 x 820 mm
Container capacity
10 m³
Spreading qty at 2 km / h
1 – 60 l/m²
Empty capacity
5,000 kg
Working width / Partial widths
2,360 mm/3 x 820 mm
Container capacity
16 m³
Spreading qty at 2 km / h
1 – 60 l/m²
Empty capacity
6,800 kg

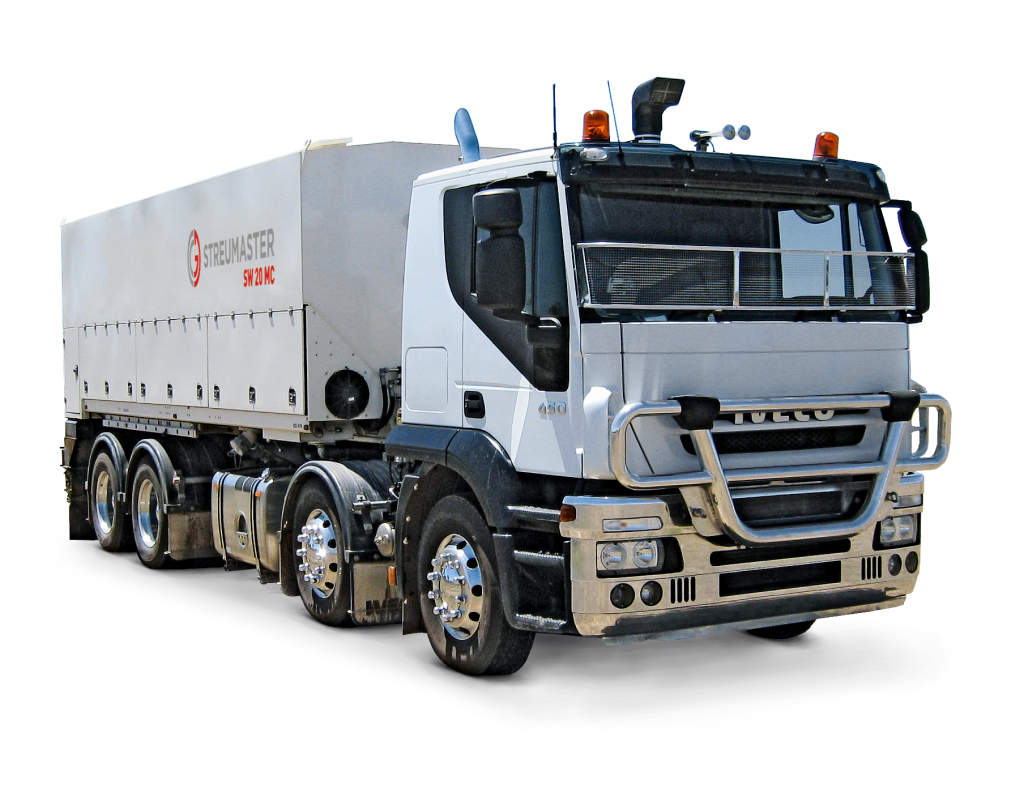

Truck-mounted spreaders are spreader units designed to be mounted on different carrier vehicles. Available hopper volumes include 12 m³, 16 m³, 18 m³ or 20 m³. Trucks of different sizes are usually used as carrier vehicles. Spreader units can also be mounted on dumpers, tracked vehicles or special trucks upon request.
Working width / Partial widths
2.360 mm (820 mm / 720 mm / 820 mm)
Container capacity
12 m³
Spreading qty at 2 km / h
1 – 60 l/m²
Built-up empty weight
4,200 kg
Working width / Partial widths
2.360 mm (820 mm / 720 mm / 820 mm)
Container capacity
16 m³
Spreading qty at 2 km / h
1 – 60 l/m²
Built-up empty weight
4,700 kg
Working width / Partial widths
2.360 mm (820 mm / 720 mm / 820 mm)
Container capacity
18 m³
Spreading qty at 2 km / h
5 – 60 l/m²
Built-up empty weight
4,800 kg
Working width / Partial widths
2.360 mm (820 mm / 720 mm / 820 mm)
Container capacity
20 m³
Spreading qty at 2 km / h
1 – 60 l/m²
Built-up empty weight
5,200 kg
Self-propelled spreaders consist of an all-terrain, three-axle dumper carrier vehicle and a binder container specially designed for use with it. Self-propelled spreaders have a hopper volume of 18 m³. Thanks to their optimum off-road performance, these spreaders are capable of achieving extremely high daily output rates..
Working width / Partial widths
2.360 mm (820 mm / 720 mm / 820 mm)
Container capacity
18 m³
Spreading qty at 2 km / h
5 – 60 l/m²
Empty weight
20,700 kg
